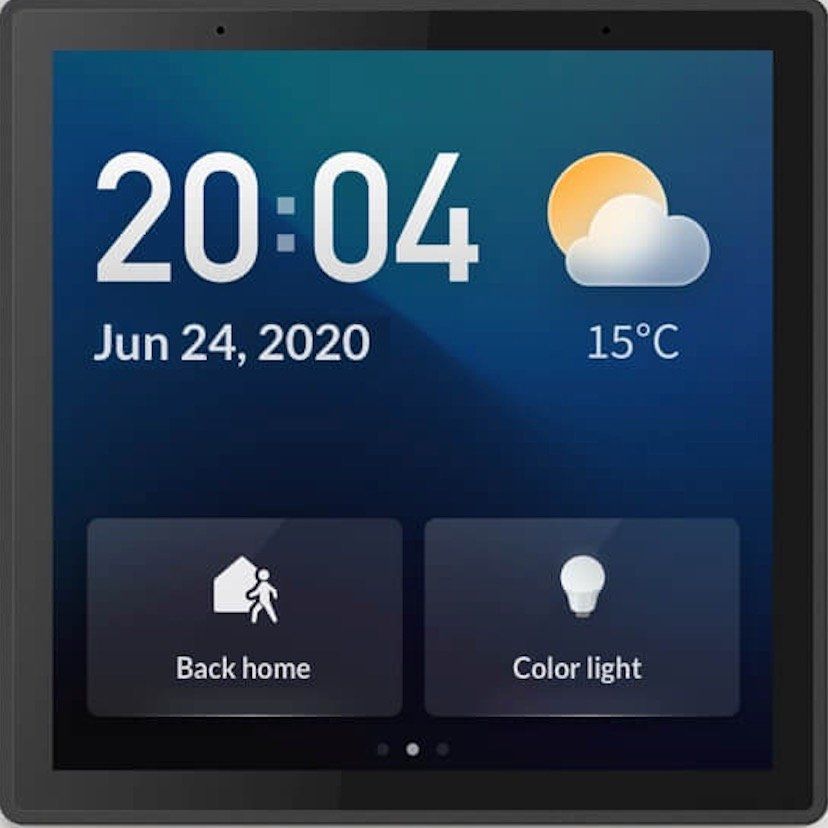

Smart Control Panel & Hub
SCP-001
Control: Quad-core ARM Cortex Processor
Display: 4-inchCapacitive Touch Screen
Storage: 2GB RAM + 8 GAM ROM
Wiring: Neutral & Live
Connectivity: RJ45 or Wifi
Power: 100-240V (50-60Hz)
Network Standards: Wifi, Bluetooth, Zigbee
SPECIFICATION
User Guide
Wired/Wireless

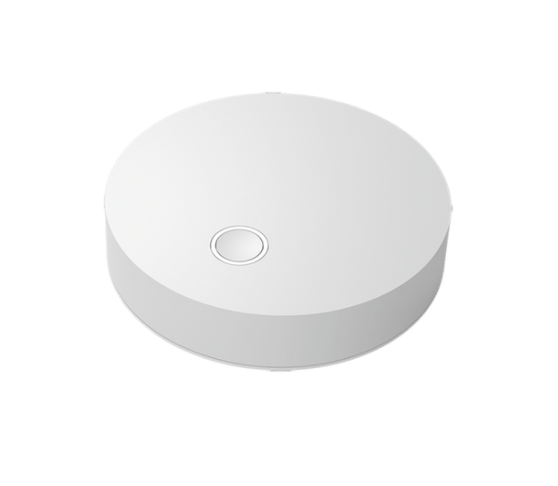

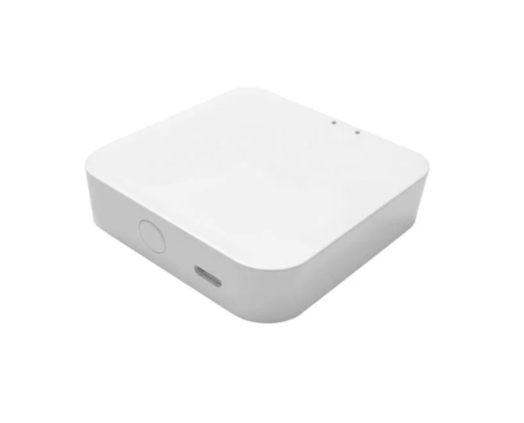

Zigbee Hub
ZHB001-003
Power: DC 5V (1A)
Network Connectivity:RJ45 or Wifi
Operating Temperature: -10 - 55°C
Network Standard: Zigbee
Wireless Fidelity: IEEE802.15.4
Selection: Wired/ Wired Premium/ Wireless
001 SPECIFICATION
002 SPECIFICATION
003 SPECIFICATION

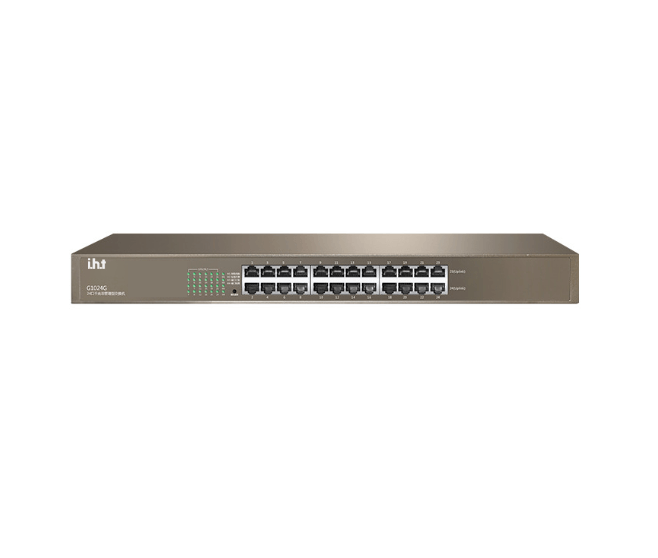

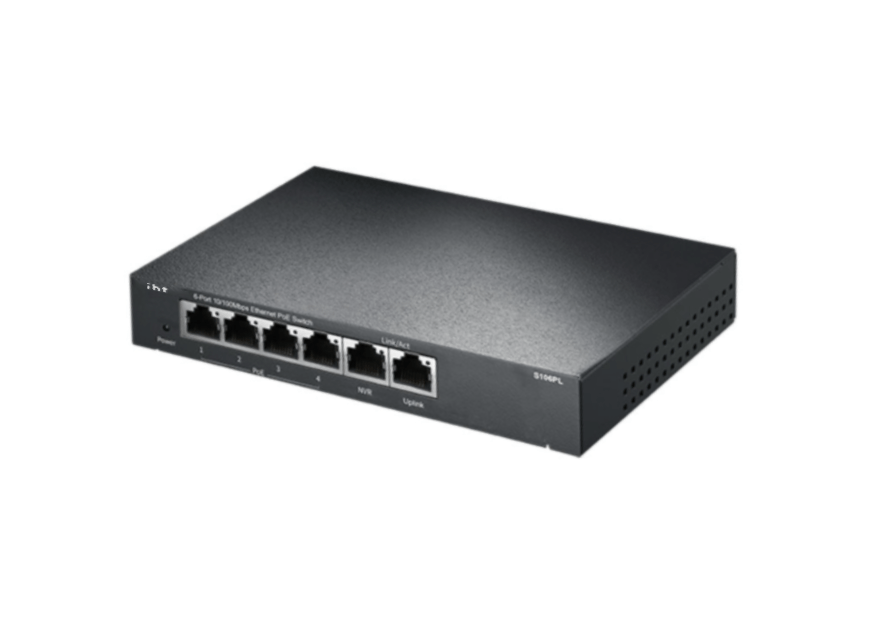

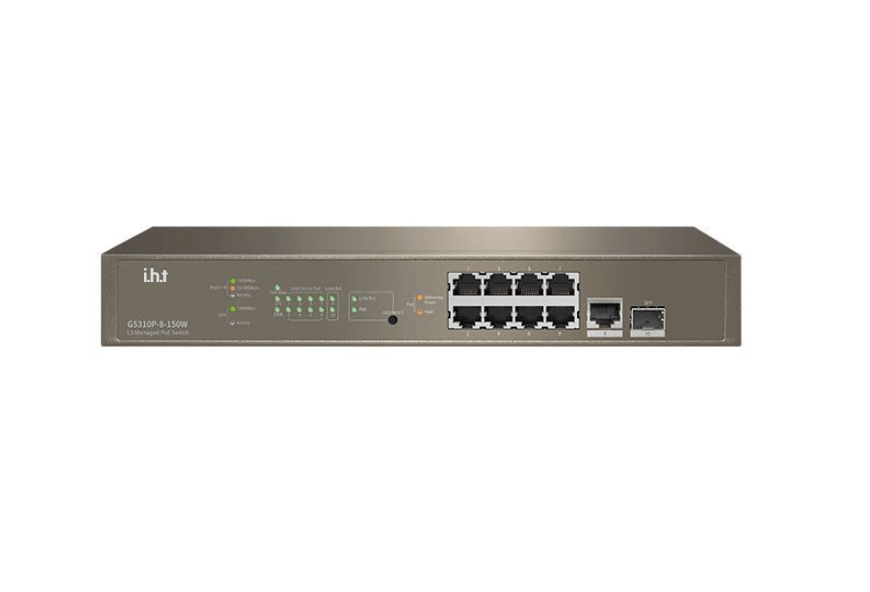

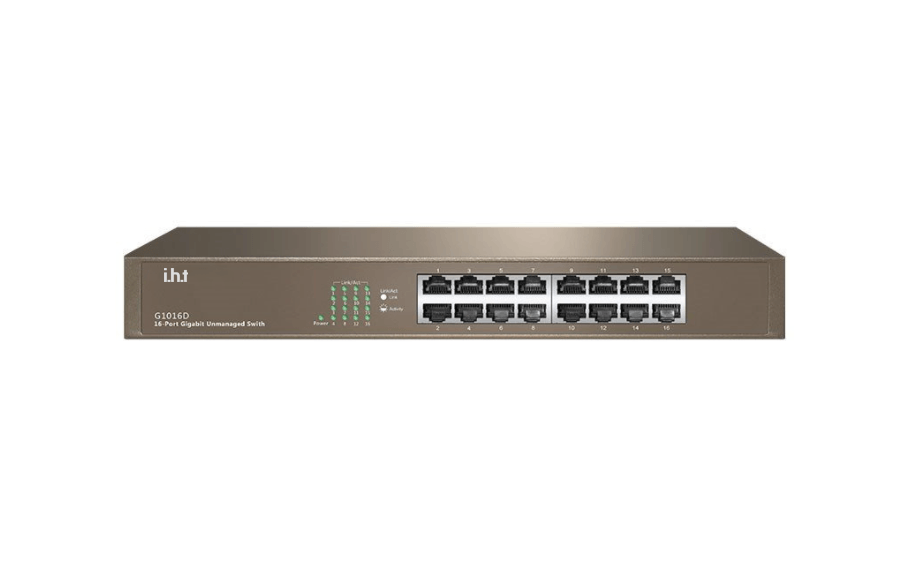

POE Network Switch
PNS006, 009, 016, 024
Number of Ports: 4, 9, 16, 24
Standards: Compliant with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab Standards
RJ45 Ports: 10/100/1000 Mbps Auto-Negotiation
Power: 100~240V AC, 50/60Hz
Working Temperature: 0-45°C
Lighting Proof: 6KV
006 SPECIFICATION
009 SPECIFICATION
016 SPECIFICATION
024 SPECIFICATION

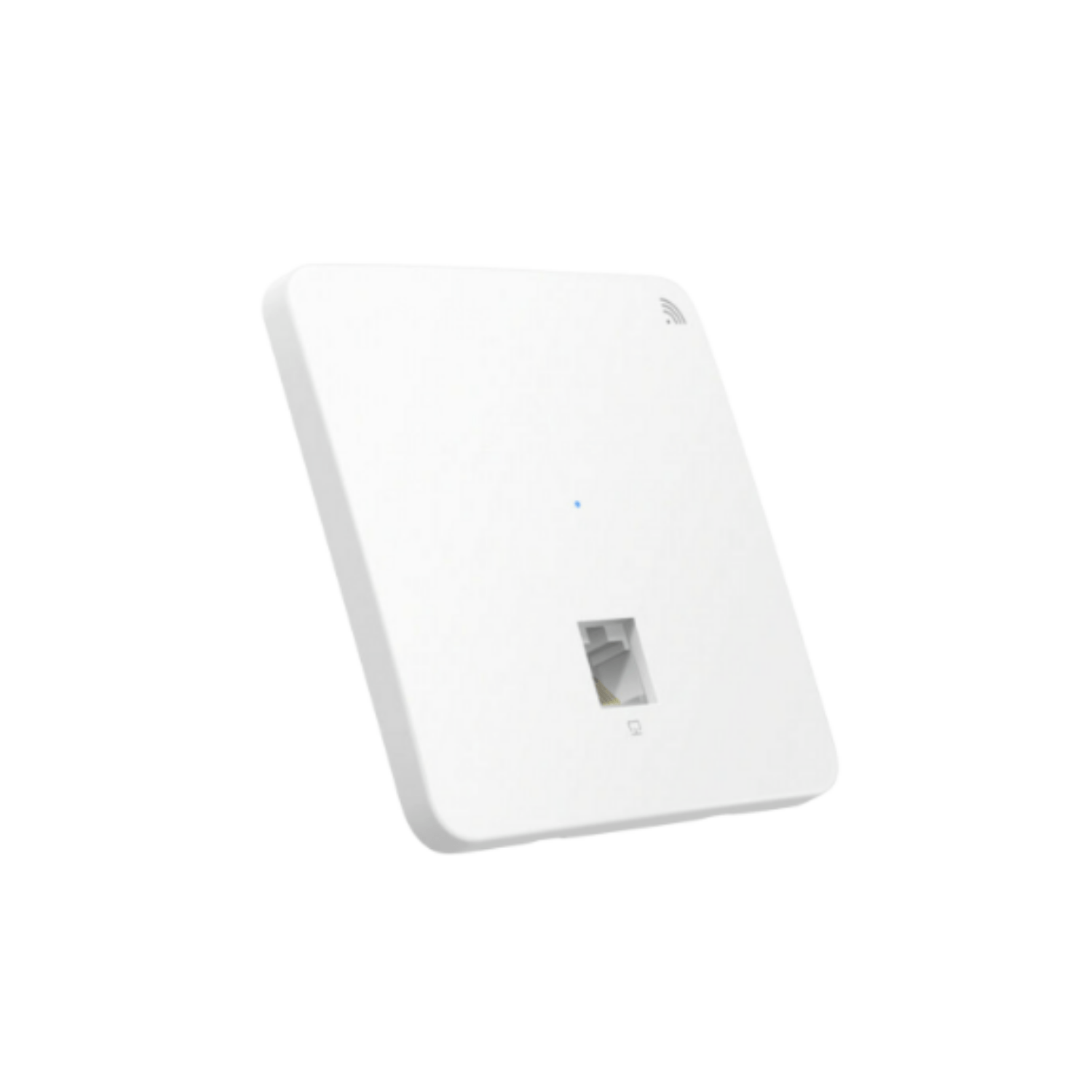

Network Access Point
NAP-001
Operating Mode: AP/Client + AP
Frequency Range: 2 .4GHz (IEEE802.11 n/g/b)
Transfer Rate: 300Mbps
Standards: PoE0802.3af Standards
Wiring: POE
Max Power Consumption: 12.49W
VLAN: Multiple SSID
IHT APP
